TAF 243216 Needle roller bearing 24x32x16
	Part Number: Kit8457 Our Low Price: $7.95 Shipping Weight: 0.07 pounds
	Quantity:

Rolling Bearing

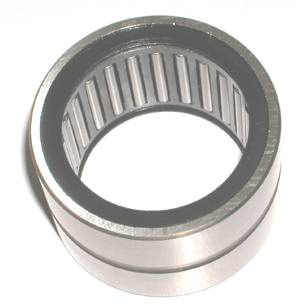

Needle Roller Bearing TAF 243216

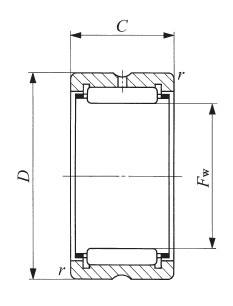

Machined type needle roller bearing TAF 243216, the dimensions of the TAF 243216 illustrated in the mechanical drawing shown below, the TAF 243216 inner diameter is 24mm, the outer diameter is 32mm, and width is 16mm. Item: Needle Roller Bearing Dimensions: 24*32*16 mm/Metric ID (inner diameter)/Bore=24mm OD (outer diameter)=32mm Width/Height/thickness=16mm Size: 24mm x 32mm x 16mm Type: Needle Roller Bearing TAF 243216 Closures: Rubber Sealed (both sides) Quantity: One Bearing (inner cone is included)

Item Name d Fw D C Basic Load Rating C (Dynamic) lbF Co (Static) lbF TAF 243216 24 24 32 16 1560 2300
